Our Lug Shafts are engineered for strength, precision, and long-lasting performance in core handling and winding applications. Designed with advanced gripping technology, they ensure secure core holding while maintaining operational stability across various industrial environments.

Product Overview

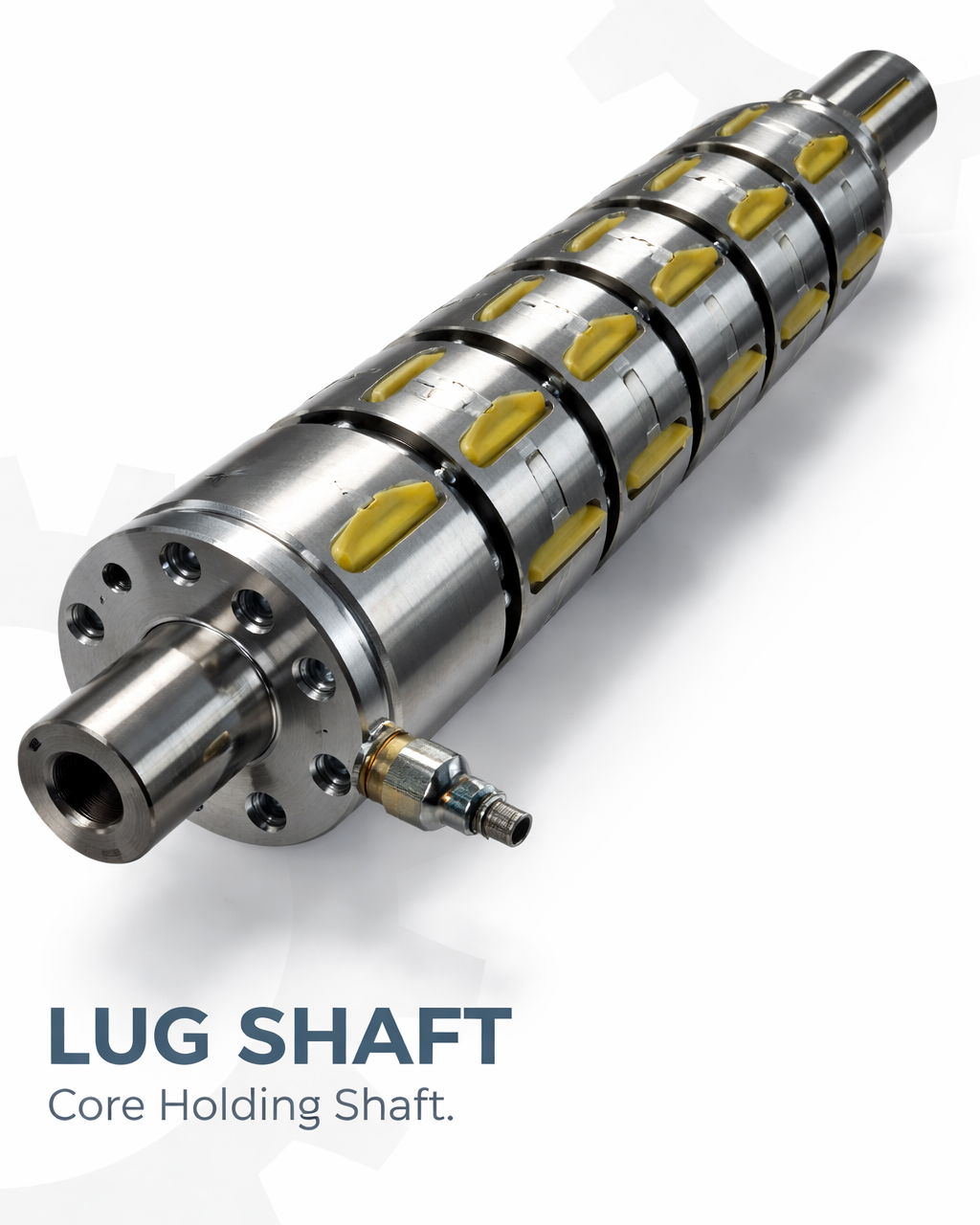

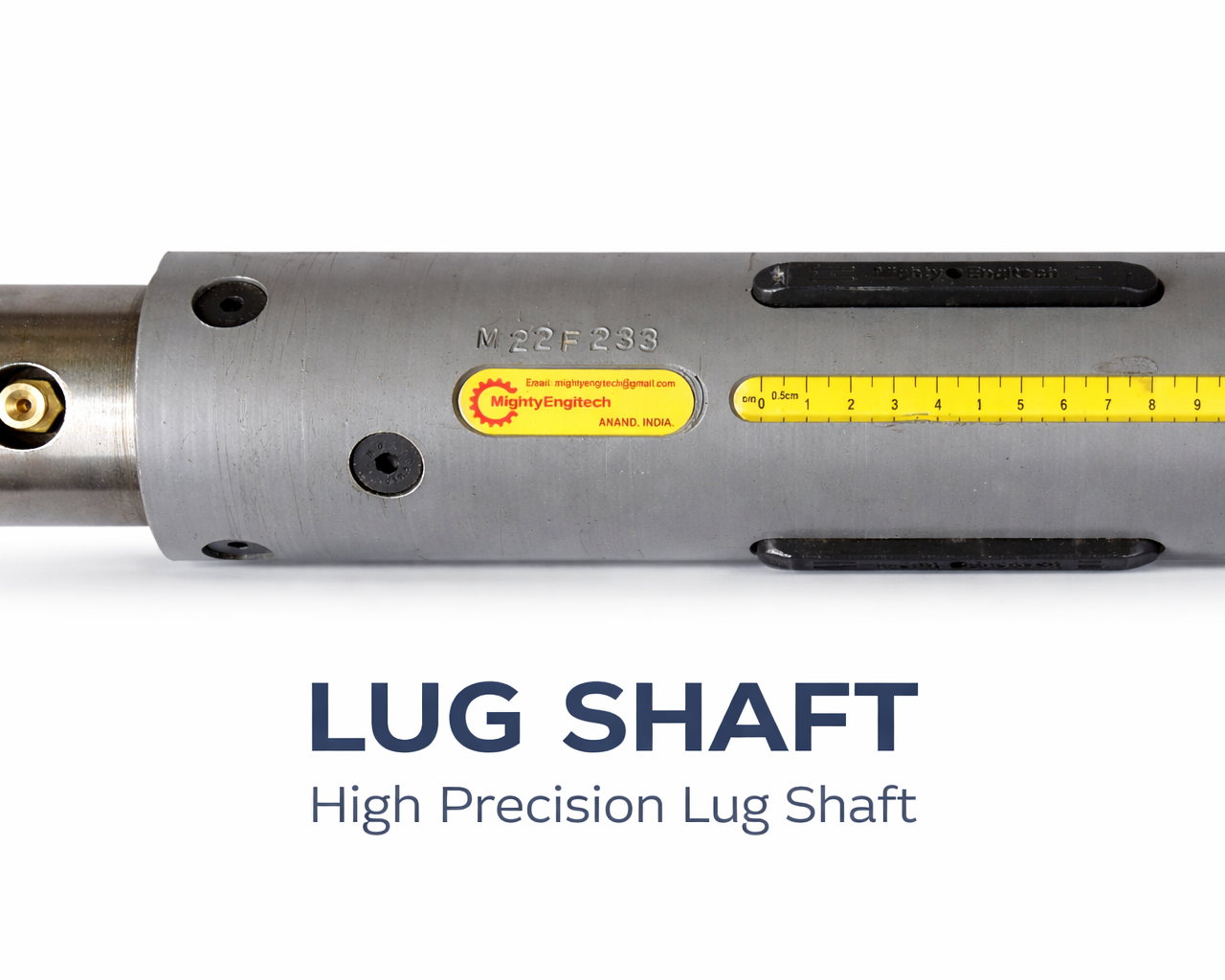

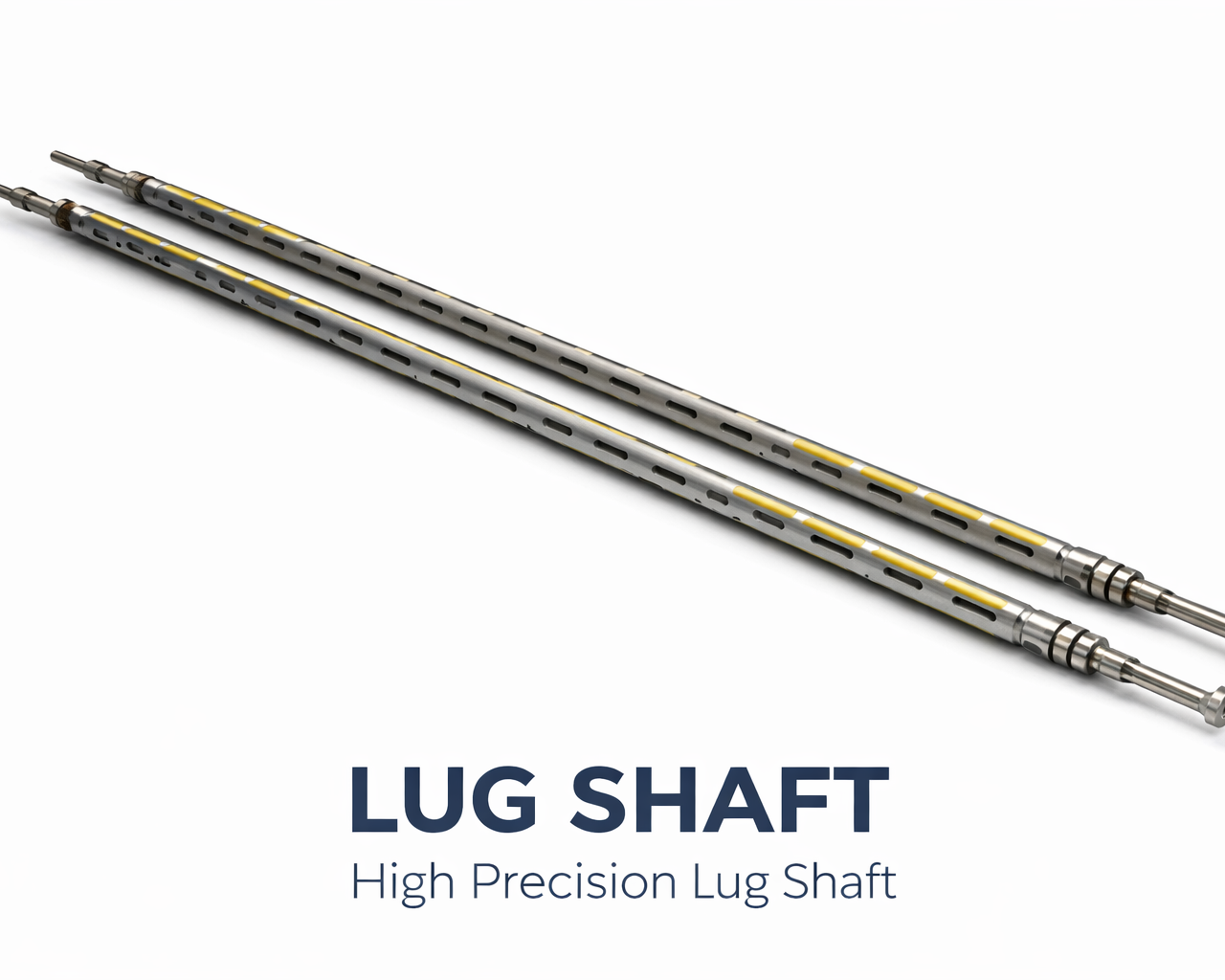

Lug shafts feature precision-cut grippers inserted through a durable metal pipe, supported by a pneumatic bladder system for inflation. Once inflated, the grippers expand outward to provide a firm and positive hold on the core, ensuring reliable torque transmission and smooth operation.

Material Specifications

Pipe:

• High-grade Steel or Aluminum

Lugs (Grippers):

• Steel

• Rubber

• Plastic (P.U.)

Available Sizes

• Core ID: 3″ to 12″

• Length: Up to 6000 mm (240 inches)

Optional Configurations

• Cantilever Shaft Option

• Multiple lug (gripper) size availability

• Custom-built solutions based on application needs

Key Features:

• Strong & Rigid Construction for heavy-duty industrial use
• Customizable Diameter to suit specific application requirements
• Suitable for light-duty to heavy-duty operations
• Simple, durable design for extended service life
• Staggered lug configuration – ideal for winding applications
• Precision-engineered grippers with chamfered edges for easy core insertion
• Tight journal tolerances for improved fitting, stability, and rigidity during operation
